Cutomized new board 3.7V 4.2V 3A Li-ion Lithium Battery Charger Over Charge Discharge Overcurrent Protection Board

Brand Name : CANYI

Model Number : CY-D004CPMA

Certification : RoHS

Place of Origin : Guangdong, China

MOQ : 500PCS

Price : Negotiated

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 10,000PCS Per Day

Delivery Time : 15-20 days

Packaging Details : Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms

Type : Lithium Battery Charger Protection Board

Package : DIP

Shipping by : DHL\UPS\Fedex\EMS\HK Post

Lead time : 7-12days

Application : Battery

OEM : Can bu customized here

Contact Now

We accept customers' customization. Please provide us with your product details for our evaluation.
1. Please refer to this link for classic products:
http://www.zd_schottkysignaldiode.ecer.com/sale-13277422-12-6v-3s60a-bms-led-pcb-board-assembly-for-battery-charger.html

12.6V 3S60A BMS led pcb board design for 18650 Li-ion Battery Charger Protection Board pcb assembly prototype service

The same series of products can be obtained.

Description:
  1. Scope of application: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, withoutlimitation of shape and size)
  2. Charging Voltage: 12.6V~13.6V
  3. Continuous discharge current (upper limit): 60A ( if the heat dissipation environmentis not good, please reduce the use of load current )
  4. Continuous charging current (upper limit): 10A
  5. Enhanced version: suitable for electric drills with starting current below 120A and power below 260W
  6. Balanced version: suitable for electric drills with starting current below 120A and power below 260W, with balanced charging function
  7. Product Size: 41*55*3.4mm (Enhanced Version) 41*62*3.4mm (Balanced Version)
  8. Product weight: 8.8g (enhanced version) 9.8g (balanced version)

Conditions for successful start of electric drill:

  1. Successfully start the drill requires 3 10C-20C power batteries, or 6 5C-10C power batteries
  2. Using 0V and 12.6V connection wires, choose copper wires of 4mm2 or more, the shorter the better

  3. Strictly connect 0V, 4.2V, 8.4V, 12.6V,16.8V according to the diagram. Do not touch any components on the board when soldering the wire. Do not intentionally short circuit./Do not deliberately make it short circuit.

  4. Do not mix the good battery and the battery.

For more details please contact us or refer to the link attached.

2. Product information on this page:
Size: approx.12.4*10.3*3mm

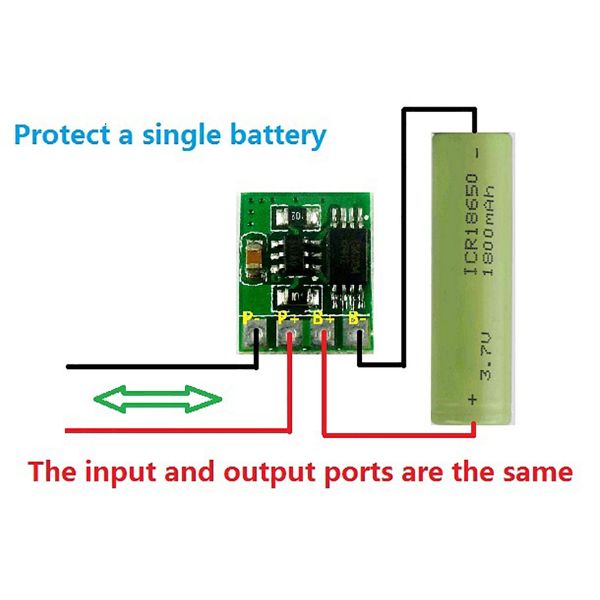

Protect single 3.7V lithium battery:
Cutomized new board 3.7V 4.2V 3A Li-ion Lithium Battery Charger Over Charge Discharge Overcurrent Protection Board

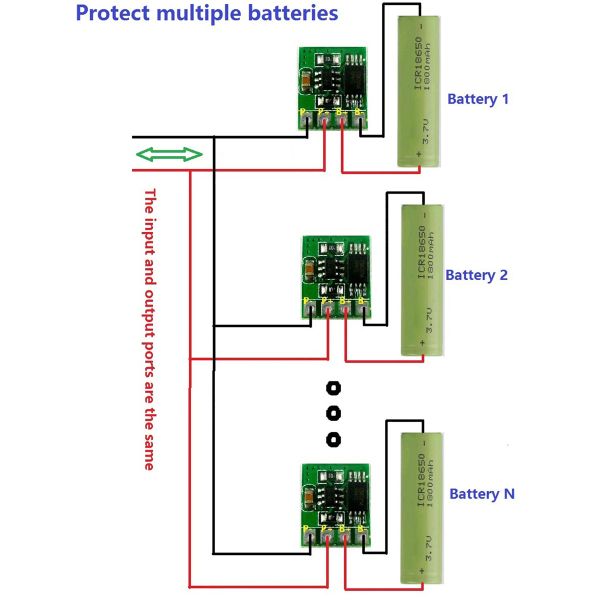

Protect multiple 3.7V lithium batteries(no more than 10pcs recommended):
Cutomized new board 3.7V 4.2V 3A Li-ion Lithium Battery Charger Over Charge Discharge Overcurrent Protection Board
DIY mobile power(This application you need DD05CVSA
Cutomized new board 3.7V 4.2V 3A Li-ion Lithium Battery Charger Over Charge Discharge Overcurrent Protection Board

Welcome to customize the circuit board you need.

Contact: Tanky
Email:

tanky@zd_schottkysignaldiode.ecer.com
Wechat: +86 13750005407
Skype: facebook@doublelight.com.cn
Whatsapp: +86 13750005407
